DevLake Plugin

The gitai plugin for Apache DevLake syncs pull request AI-attribution and cost metrics from the Git AI Public Analytics API into your DevLake instance, so AI authorship shows up next to the DORA and engineering metrics you already track — and you can chart it in DevLake's bundled Grafana.

It is a Python remote plugin built on pydevlake, and it is deliberately tool-layer only: rows land in a _tool_gitai_pull_requests table and nothing is written to DevLake's shared domain pull_requests table. Your GitHub/GitLab plugin data stays untouched — you join against it in dashboards:

SELECT dpr.*, g.percent_ai, g.ai_lines, g.human_lines,
       g.primary_agent, g.primary_model, g.estimated_cost_usd
FROM pull_requests dpr
JOIN repos r ON dpr.base_repo_id = r.id
JOIN _tool_gitai_pull_requests g
  ON g.repo_url = r.url AND g.number = dpr.pull_request_key

The plugin lives at github.com/git-ai-project/devlake-integration, alongside a reference docker-compose setup and the starter Grafana dashboard:

git clone https://github.com/git-ai-project/devlake-integration.git

The plugin itself is the plugins/gitai/ directory — the plugin package, run.sh, and pyproject.toml.

What data you get

One row per pull request in _tool_gitai_pull_requests, keyed by (repo_url, number):

Two things to keep in mind when writing queries:

• percent_ai is a 0–1 fraction, not 0–100. Multiply by 100 for display.
• Filter where it matters: authorship = 1 (a boolean — true means the PR has attribution data) for attribution metrics, estimated_cost_usd > 0 for cost metrics. PRs from before Git AI was installed will have neither.

Syncs are incremental — each run only fetches PRs updated since the previous run for that repo, so recurring blueprints stay fast.

Install the plugin

DevLake discovers Python plugins by scanning REMOTE_PLUGIN_DIR (/app/python/plugins in the official images) for */run.sh at server startup. The official apache/devlake image already ships everything the plugin needs (pydevlake, uv.sh, Python 3.9), so installing is just getting the gitai/ directory into that path — no code changes, no DevLake fork.

Pick one of the two approaches below.

Option A: add a layer to your Docker image

Best for production — the plugin becomes part of an immutable image you can tag, push, and roll back.

From a checkout of the devlake-integration repo, add a Dockerfile:

FROM devlake.docker.scarf.sh/apache/devlake:v1.0.3-beta15

COPY plugins/gitai /app/python/plugins/gitai

Build it and point your docker-compose.yml at the new image:

docker build -t devlake-gitai:v1.0.3-beta15 .

services:
  devlake:
    image: devlake-gitai:v1.0.3-beta15
    # ...rest unchanged

Option B: copy the raw plugin into an existing deployment

Best for trying it out — copy the directory straight into the running container and restart so DevLake re-scans its plugin directory:

docker cp plugins/gitai <devlake-container>:/app/python/plugins/gitai
docker restart <devlake-container>

docker cp doesn't survive the container being recreated (e.g. on image upgrade). To make it stick without building an image, bind-mount the directory in a compose override instead:

# docker-compose.override.yml
services:
  devlake:
    volumes:
      - ./plugins/gitai:/app/python/plugins/gitai

docker compose up -d devlake

First startup

On first use the plugin builds its own virtualenv inside the plugin directory using uv — the container needs outbound network access to PyPI for that one build.

The plugin ships database migrations (it creates its _tool_gitai_* tables). If DevLake's API starts answering 428 Precondition Required after the restart, confirm the migration:

curl http://localhost:8080/proceed-db-migration

Then verify DevLake picked the plugin up:

curl http://localhost:8080/plugins | grep gitai

Connect it to Git AI

You'll need a Git AI API key — create one in the Git AI dashboard under Settings → API Keys (see Authentication).

DevLake's config-ui hardcodes its plugin catalog, so gitai won't appear on the Connections page. Everything works through DevLake's REST API instead (http://localhost:8080 below — adjust for your deployment), and once a repo is attached, the plugin does show up in the blueprint UI.

1. Create and test a connection

curl -X POST localhost:8080/plugins/gitai/connections \
  -H 'Content-Type: application/json' \
  -d '{"name":"gitai","endpoint":"https://usegitai.com/api/v1","token":"<YOUR API KEY>"}'

curl -X POST localhost:8080/plugins/gitai/connections/1/test -d '{}'

Self-hosted Git AI deployments can set GITAI_ENDPOINT on the devlake container to change the default endpoint for all gitai connections (a per-connection endpoint still overrides it).

2. Browse and attach repos

Scope groups are {domain}/{org} pairs; scopes are repos, identified by repo URL:

# List orgs visible to your API key
curl 'localhost:8080/plugins/gitai/connections/1/remote-scopes'

# List repos in one org
curl 'localhost:8080/plugins/gitai/connections/1/remote-scopes?groupId=github.com/<org>'

# Create a scope config, then attach repos
curl -X POST localhost:8080/plugins/gitai/connections/1/scope-configs \
  -H 'Content-Type: application/json' \
  -d '{"name":"default","entities":["CODE"]}'

curl -X PUT localhost:8080/plugins/gitai/connections/1/scopes \
  -H 'Content-Type: application/json' \
  -d '{"data":[{"id":"<repo url>","name":"<org/name>","url":"<repo url>","domain":"github.com","org":"<org>","repoName":"<name>","scopeConfigId":1}]}'

3. Add it to a project blueprint and run

Attach the connection to the DevLake project that already collects the same repos from GitHub/GitLab, so the tool table has domain PRs to join against:

curl -X PATCH localhost:8080/blueprints/<id> \
  -H 'Content-Type: application/json' \
  -d '{"connections":[{"pluginName":"gitai","connectionId":1,"scopes":[{"scopeId":"<repo url>"}]}]}'

curl -X POST localhost:8080/blueprints/<id>/trigger \
  -d '{"skipCollectors":false,"fullSync":false}'

When the pipeline finishes, _tool_gitai_pull_requests is populated. From here on, the blueprint's normal schedule keeps it in sync incrementally.

Set up a dashboard

DevLake ships Grafana pre-wired to its database (the grafana service in the standard compose file, mysql datasource), so Git AI panels live alongside your DORA dashboards.

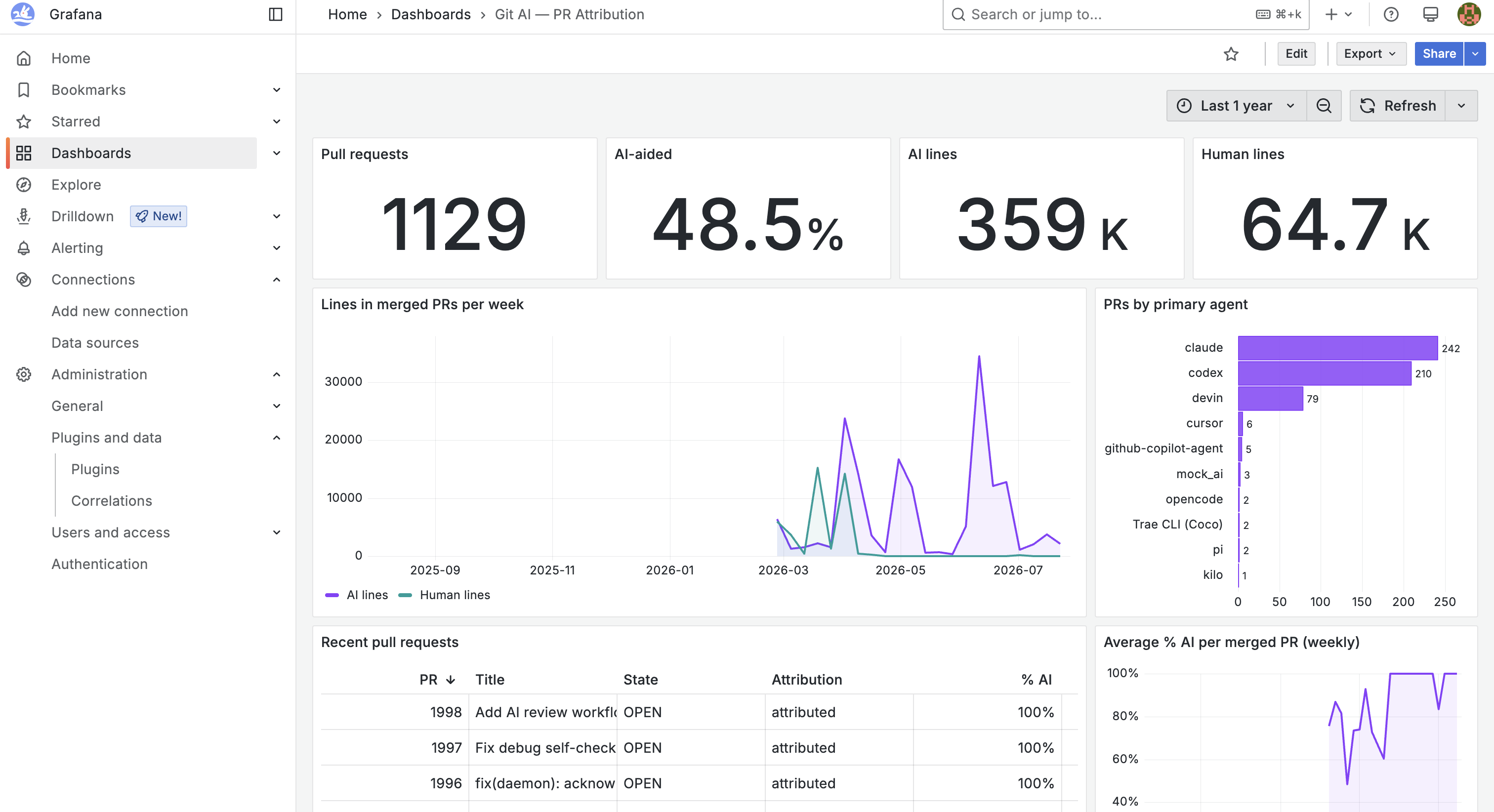

The dashboard above is built entirely from _tool_gitai_pull_requests — top-line stats, AI vs. human lines per week, a PR breakdown by primary agent, and a recent-PRs table with per-PR attribution.

Import the starter dashboard

Grab grafana-gitai-stats.json from the repo, then in Grafana go to Dashboards → New → Import, upload the file, and pick the mysql datasource. You get five panels out of the box: mean and median % AI across attributed PRs, mean and median cost per PR, and a coverage stat showing how many PRs have attribution and cost data at all.

Build your own panels

Add panels with SQL queries against _tool_gitai_pull_requests, joining to DevLake's domain tables when you want to slice by anything the GitHub/GitLab plugins collect (labels, reviewers, cycle time, and so on). Some starting points:

Average % AI per repo:

SELECT repo_name,
       100 * AVG(percent_ai) AS "% AI",
       COUNT(*)              AS "PRs"
FROM _tool_gitai_pull_requests
WHERE authorship = 1
GROUP BY repo_name
ORDER BY 2 DESC

% AI over time (by month merged):

SELECT DATE_FORMAT(merged_at, '%Y-%m') AS month,
       100 * AVG(percent_ai)           AS "% AI"
FROM _tool_gitai_pull_requests
WHERE merged_at IS NOT NULL
  AND authorship = 1
GROUP BY 1
ORDER BY 1

Agent spend vs. cycle time (joined with domain PRs):

SELECT g.primary_agent                                        AS agent,
       AVG(g.estimated_cost_usd)                              AS "Cost per PR",
       AVG(TIMESTAMPDIFF(HOUR, dpr.created_date, dpr.merged_date)) AS "Hours to merge"
FROM pull_requests dpr
JOIN repos r ON dpr.base_repo_id = r.id
JOIN _tool_gitai_pull_requests g
  ON g.repo_url = r.url AND g.number = dpr.pull_request_key
WHERE g.estimated_cost_usd > 0 AND dpr.merged_date IS NOT NULL
GROUP BY 1
